Durable Aramid Fiber Braided Gland Packing For Valves & Pumps Seal

Product Categories
SANHE 3A RUBBER & PLASTIC CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Durable Aramid Fiber Braided Gland Packing For Valves & Pumps Seal

  • 1
  • 2
  • 3

Brand Name : 3A Rubber

Model Number : 3A3004

Certification : ROHS/FCC/SGS

Place of Origin : China

MOQ : 10pieces

Price : negotiation

Payment Terms : T/T, L/C, Paypal, Western Union

Supply Ability : 10000kgs per month

Delivery Time : 10 working days after received your payment

Packaging Details : Packed in cartons

Material : PTFE and aramid yarn fiber

Color : yellow

Structure : lattice braid

PH range : 0-14

Working temperature : -150 ~ +650°C

Size : 3-50mm x 3-50mm x 5, 10, 15kgs

Contact Now

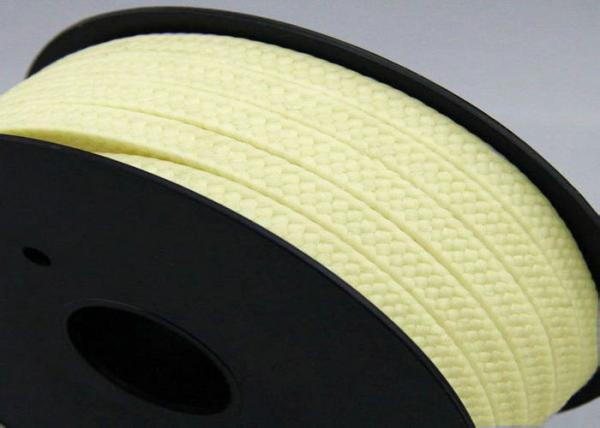

aramid fiber braided gland packing for valves & pumps

Packaging & Delivery

Packaging Details: per 5 or 10 kgs in one roll, carton box, export wooden box or pallets
Delivery Detail: against purchase quantity

Specifications

1. Material:PTFE & aramid fiber
2. Temperature resistance:-50 ~ +650 degree C
3. PH range:2~12
4. Application:pumps in all industry

Detailed Introduction

Aramid fiber packing is braided from high quality Dupont aramid fiber with PTFE impregnated and lubricant additive. It shows good chemical resistance, high elasticity and very low cold flow. It can resist severe media and higher pressure. The packing is lubricated with silicone based compound for quick and easy break-in.

Product Features

  • It is wear resistant but may damage the shaft if not used properly.
  • A minimum shaft hardness of 60HRC is therefore recommended.
  • Superior performance
  • Lower frictional factor

Material Aramid Fiber (with or without PTFE impregnated)
Temperature Range -100 up to +280 oC
Rotating 25 bar
Reciprocating 100 bar
Static 250 bar
Shaft Speed 25m/s
PH 2~12
Density Appr. 1.4g/cm3

Typical Application

  • This is a universal packing which can be used for pumps in all types of industry.
  • Chemical, petrochemical, pharmaceutical, food and sugar industries, pulp and paper mills, etc.
  • A durable packing able to withstand granular and abrasive applications.
